Product Description
The Simagic NEO X Hub is a next-generation, fully modular button hub designed for sim racers who demand maximum flexibility, precision, and control in their steering wheel setups. Built with a high-strength carbon fibre composite panel and reinforced steel frame, it delivers top-tier durability and a premium feel.
With support for UP+ paddle modules (single or dual paddle / dual-clutch style), the NEO X Hub allows you to configure it to match your driving style — whether you prefer clean paddle-less style, rally-friendly single paddle, or dual paddle setups for GT / formula racing. All paddle modules are adjustable in shape, material, width, throw, depth, and distance, ensuring comfort and precise control.

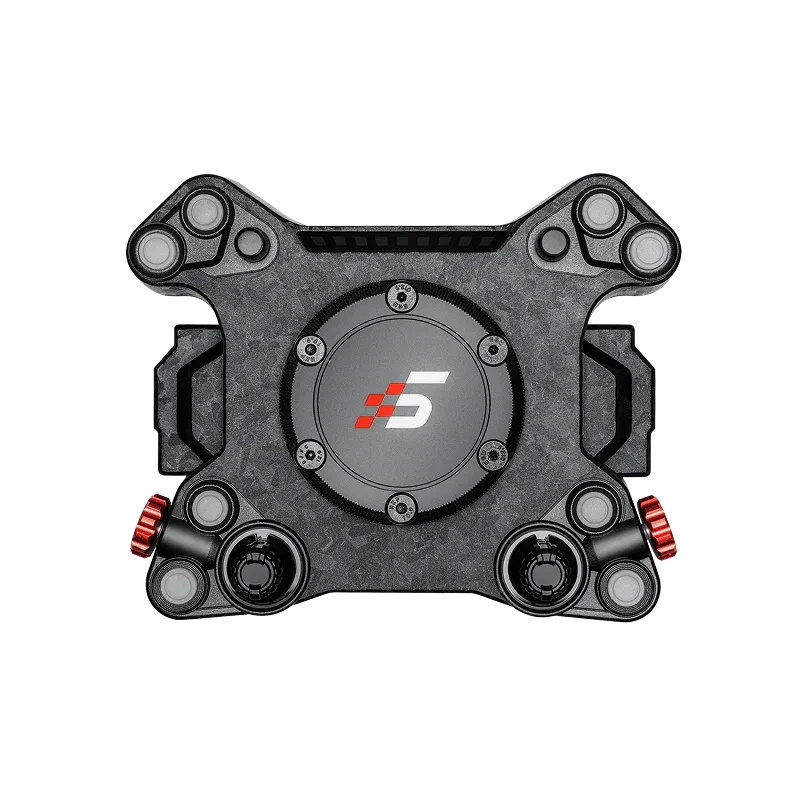

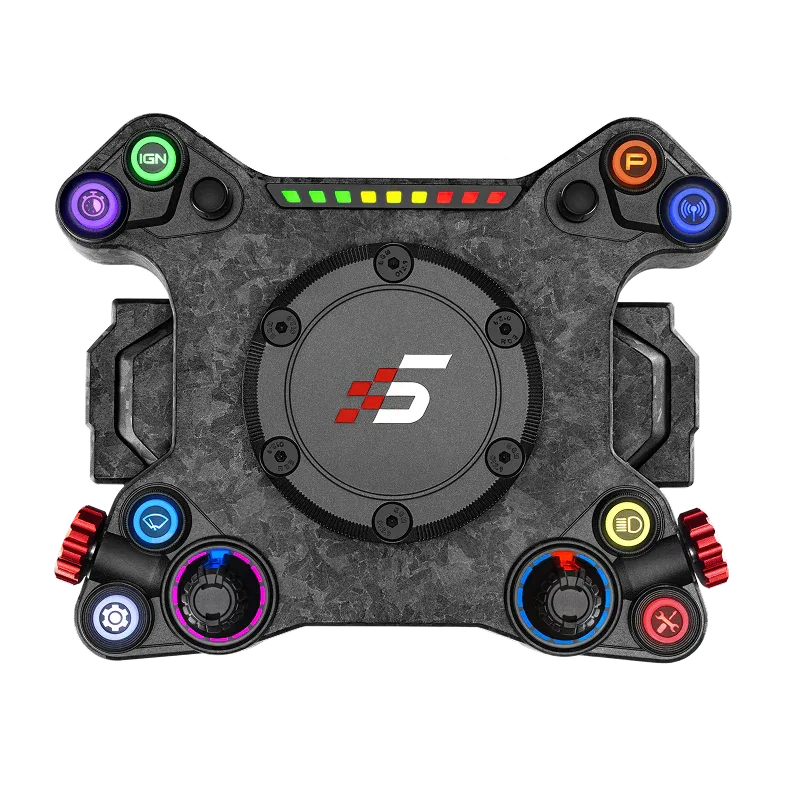

On the front you’ll find:
-
8 customizable RGB buttons
-

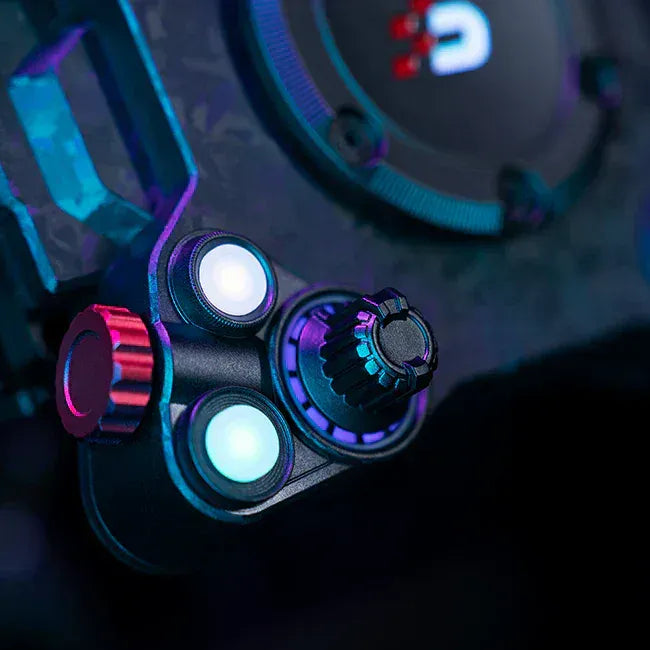

2 thumb rotary encoders for quick parameter tweaks
-
2 seven-way multi-position rotary switches
-
2 twelve-set programmable LED encoders
-
A rev-LED strip with 9 soft-light RGB rev-light segments

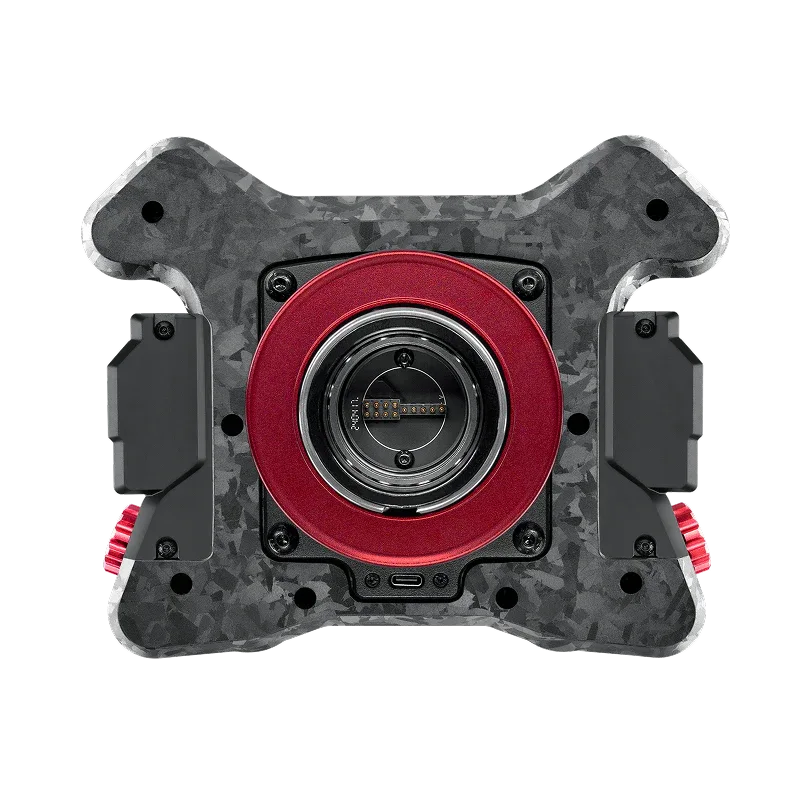

Built-in hardware includes a SIMAGIC QR50 quick release adapter, plus compatibility (optional) with QR70. Includes mounting screws, button cap stickers, a connecting line / cable, USB Type-C interface. Dimensions are 189.6 × 109.1 × 153.7 mm, and net weight is 1,075 g (with quick release, no paddle/shifter modules installed).
Software is supported via SimPro Manager, with full control over button mapping, LED lighting, rev-lights, paddles, and firmware updates. Optional accessories include the MagLink adapter, spare wheel rims, QR70 quick release, UP+ shifter modules, and cover and mounting kits.
Trak Racer, serving sim racing communities globally since 2008, is proud to be the official global Simagic distributor offering the NEO X Hub. With partnerships with the BWT Alpine F1® Team and Airbus Flight Sim, we align with professional motorsport and aviation simulators — ensuring each product like the NEO X Hub meets high standards of precision, modular design, durability, and real-race control.
Key Features & Specifications
| Feature | Detail |
|---|---|
| Materials & Build | Carbon fibre composite panel; steel frame reinforcing; high durability and premium feel. |
| Paddle Module Options | UP+ single, dual paddle, dual-clutch; various paddle styles, materials and widths; fully adjustable paddle throw. |
| Input Controls | 8 RGB back-lit buttons; 2 thumb rotary encoders; 2 seven-way rotary switches; 2 twelve-set programmable LED encoders; rev-LED strip with 9 segments. |
| Quick Release Compatibility | QR50 included; QR70 optional; standard 50/70 mm bolt patterns. |
| Dimensions & Weight | 189.6 × 109.1 × 153.7 mm; ~1,075 g net (with quick release, no paddle modules). |
| Included Hardware | Mounting screws; button cap stickers; connecting line / cable; USB-C interface; installation kit. |
| Software & Customization | Full support via SimPro Manager; button mapping; LED/rev-light settings; firmware updates; optional compatibility with SimHub via MagLink. |
| Optional Accessories | MagLink adapter; UP+ shifter modules; spare rims; QR70 quick release; cover plates; mounting hardware kits. |
| Modular Layout Flexibility | Configurable with or without paddles; adjustable paddle position, material, style; designed for formula, GT, rally / drift setups. |
Why Buy From Trak Racer
As a global distributor of Simagic gear, Trak Racer provides authentic, professional-grade sim racing equipment to drivers around the world. Purchasing a Simagic product through Trak Racer ensures genuine products, expert support, and guaranteed compatibility with Trak Racer cockpits, rigs, and motion simulator systems.
